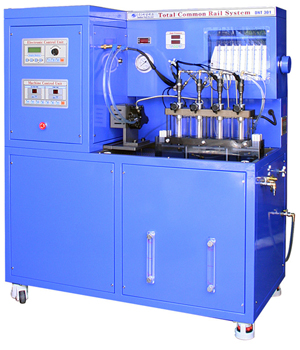

Total Common Rail Test System (MODEL DNT 301)

Product OverView

This equipment conducts general tests for Common Rail engine injector, high -pressure
pump and rail, according to injection conditions adjusted depending on pulse and pressure.

Product Features

- Various brand name injectors (Bosch, Delphi, Denso), high-pressure pump and rail checks.
- Adjustable injection conditions: pilot injection, main injection.
- Maximum measurable pressure: 2,000Bar.
- Measures injection volume, return volume and injection type.
- Adjustable rpm, injection time and pressure.
- Checks precisely injected piezo injector.
- Measures vehicle with Denso 24V.
- Black leak measurement and cleaning of vehicle.
- Color : Blue, Orange, Yellow.

Basic Specifications

Voltage	Phase AC3 380/220V 60Hz
Size(mm)	1300(L) 1400(H) 650(W) /300Kg
Motor	Siemens High-efficiency 4kw/5hp
Pilot Injection	- 100~450us (adjustable by 10us)
Main Injection	- 100~1,200us (adjustable by 10us)
Injector Drive rpm	- 120 ~ 4,000 (Automatic adjustment by rpm)
Fuel Pressure Control Valve	- Duty 0~99
Injection Measurement Duration	1~90sec
Cleaning Duration	1~95min
Injection Volume & Type Change	- Auto
Test Tube Return	- Auto
Test Oil Cooling Radiator	- 300300100/ AC220/20W
Cleaning Oil Tank	- 18L
Test Oil Tank	- 18L

DNT 301 Orange	Display Panel	Injection Volume/Return Volume Measuring part
DNT 301 Orange	Injector/high-pressure pump/rail test board	Display Panel
